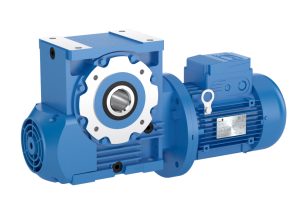

WORM GEARED MOTOR – A SERIES
Technical Data
Universal mounting with lower feet integral on the housing and B14 flanges
Rigid and precise cast iron monobloc housing
Forced ventilation for an easy thermal power dissipation (size > and = 100)
Worm wheels made of nickel bronze with controlled phosphor contentto achieve improved performance, a higher load capacity, greater reliability and wear resistanceDesigned to offer maximum reliability even in the harshest operating conditions, the H product series guarantees complete versatility and is suitable for applications that require high radial loads.
Sizes : 030 up to 140
Max torque : 200 – 8000 Nm
Ratio : 4,7 up to 282,1
Power motor : 0,12 kW up to 45 kW
